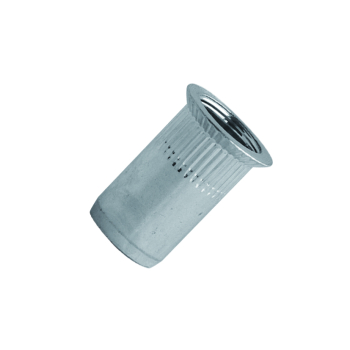

M8 X 18.5 A2 COUNTERSUNK OPEN ROUND KNURLED RIVNUT

M8 X 18.5 A2 COUNTERSUNK OPEN ROUND KNURLED RIVNUT

You need to be logged in to see prices.

Descriptions

A Stainless Steel A2-304 Countersunk Head Knurled Round Open Rivnut. Similar to flat head nuts, but where a flush surface finish is required. Used in a multitude of industries such as aerospace, automotive, rail, HVAC, white goods, electronics, DIY and general engineering.

Diameter:  M8
Length:  18.5mm
Grip Range:  2.0mm-4.5mm
Flange Diameter:  14.0mm
Flange Thickness:  1.5mm
Drill Size:  11.00mm

There are no downloads for this product.
